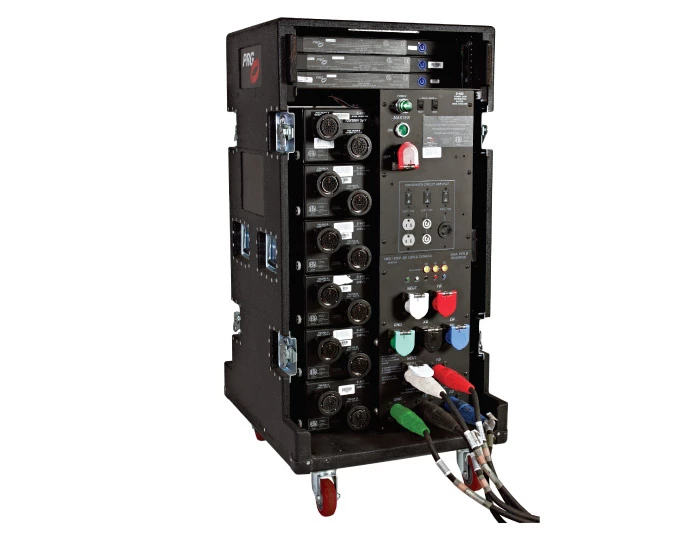

PRG Series 400® Power and Data Distribution System
An integrated power and data distribution solution, available in a variety of configurations and with a wide range of powerful accessories.
- Supports up to 72 1.2kW devices
- Single, dual, and 3-phase output
- 400 Amp Cam-loks in and out
- 120V and 208V Output
- Signal routing control and display
The PRG Series 400® Power and Data Distribution System combines power, DMX and Ethernet data through a single custom-designed trunk cable. Ethernet cable standards call for a maximum working length over copper of 300 feet, but the PRG Series 400 custom trunk cable extends the working length to 500 feet. The data system includes Ethernet switches with the ability to route any DMX universe to any DMX output connector in the system, along with complete electrical isolation. As a result, lighting systems can better accommodate the growing need for data and use less cable, and technicians can re-route signals from the user menus without making physical changes to the system.Labor costs are reduced because fewer cable runs are needed. In addition, the system provides real-time diagnostics, so technicians spend less time trouble-shooting.
For more information choose one of the resources:
-
Manuals Datasheets Technical Bulletins
-
Training Videos -
Series 400 - Chapter 1 - Introduction
Series 400 Training Video 1 from PRG on Vimeo.
-
Series 400 - Chapter 2 - Hardware Overview
Series 400 Training Video 2 from PRG on Vimeo.
-
Series 400 - Chapter 3 - Theory of Operation
Series 400 Training Video 3 from PRG on Vimeo.
-
Series 400 - Chapter 4 - System Set Up
Series 400 Training Video 4 from PRG on Vimeo.
-
Series 400 - Chapter 5 - Main Menu
Series 400 Training Video 5 from PRG on Vimeo.
-
Series 400 - Chapter 6 - System Config Inputs
Series 400 Training Video 6 from PRG on Vimeo.
-
Series 400 - Chapter 7 - System Config - Outputs
Series 400 Training Video 7 from PRG on Vimeo.
-
Series 400 - Chapter 8 - Front of House Module
Series 400 Training Video 8 from PRG on Vimeo.
-
Series 400 - Chapter 9 - Set Up Menu
Series 400 Training Video 9 from PRG on Vimeo.
-
Series 400 - Chapter 10 - System Overview
Series 400 Training Video 10 from PRG on Vimeo.
-
Series 400 - Chapter 11 - Status LED
Series 400 Training Video 11 from PRG on Vimeo.
-
Series 400 - Chapter 12 - DMX Montiro
Series 400 Training Video 12 from PRG on Vimeo.
-
Series 400 - Chapter 13 - Networking
Series 400 Training Video 13 from PRG on Vimeo.
-
Series 400 - Chapter 14 - Info Menu
Series 400 Training Video 14 from PRG on Vimeo.
-
Series 400 - Chapter 15 - Ethernet Testing
Series 400 Training Video 15 from PRG on Vimeo.
-
Series 400 - Chapter 16 - Trunk Cable Testing
Series 400 Training Video 16 from PRG on Vimeo.
-
Series 400 - Chapter 17 - Tools - How To Connect
Series 400 Training Video 17 from PRG on Vimeo.
-
Series 400 - Chapter 18 - Tools - Display and System Monitor
Series 400 Training Video 18 from PRG on Vimeo.
-
Series 400 - Chapter 19 - Tools - DMX Monitor
Series 400 Training Video 19 from PRG on Vimeo.
-
Series 400 - Chapter 20 - Config Manager
Series 400 Training Video 20 from PRG on Vimeo.
-
Series 400 - Chapter 21 - Offline
Series 400 Training Video 21 from PRG on Vimeo.
-
Series 400 - Chapter 22 - Loading Software
Series 400 Training Video 22 from PRG on Vimeo.
-
