Power and Data Distribution
PRG’s proprietary power and data distribution solutions for automation provide efficient and customizable packaging of system components. The C401 CLX insert is an Allen Bradley Programmable Logic Controller (PLC) used to provide a safety check for each cue. The C405 Data Distribution and E-Stop Insert provides reliable connectivity to the drives and manages the E-Stop signal and the Safe Torque Off (STO) functionality.
Technical Characteristics and Features

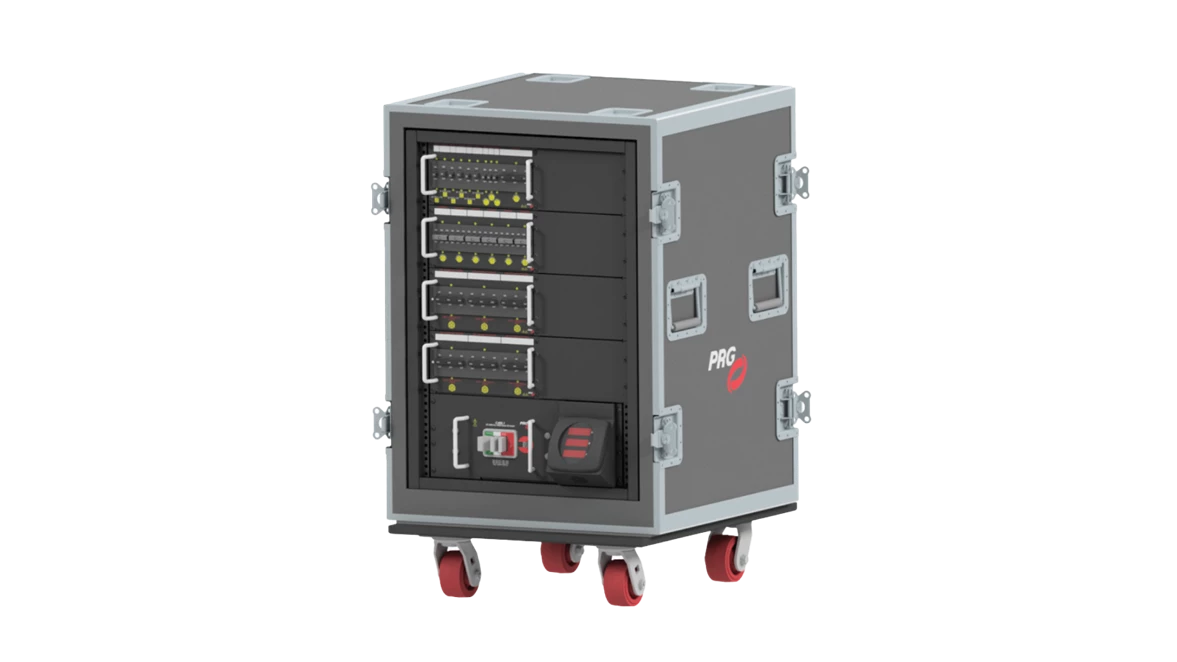

- The PRG Power Distribution Insert is a new spin on a vital system component that allows users to customize their PD to fit their needs. Built into the familiar rack mount style, this PD comes standard with Cam-loks that connect to a variety of inserts. Each circuit includes its own breaker on the front panel along with an Eaton power meter to monitor power input. The included 400-amp main breaker should be more than enough for any show’s needs.
- The C401 CLX Insert is the brains behind the motion, a vital part of the Stage Command System. This Allen Bradley Programmable Logic Controller (PLC) is an industrial grade digital computer used to provide the Go/No Go safety check for each cue. To ensure reliable and safe operation of all motion control elements, the PLC verifies that parameters for cue execution are met before sending the control signal to the SCS Drives. If one of the pre- programmed parameters is not met, the PLC will prevent the cue from being executed. Using industrial grade Allen Bradley hardware, the CLX insert is capable of operating 24/7. It is built to withstand extended temperature ranges, electrical noise, and is resistant to vibrations and impacts.
- The C405 Data Distribution and E-Stop (DDE) Insert is the distribution for many of the current drive racks used in PRG’s Stage Command control system. The integrated Allen Bradley Stratix ethernet switch provides reliable connectivity to the drives even in the harshest conditions. The DDE also manages the E-Stop signal to and from the drives, as well as the Safe Torque Off (STO) functionality. An Eaton power meter is included to allow operators to monitor all three legs of the 3-phase power individually along with peak current. An additional 100-amp breaker is also included to protect the DDE and drives from any errant power issues.
